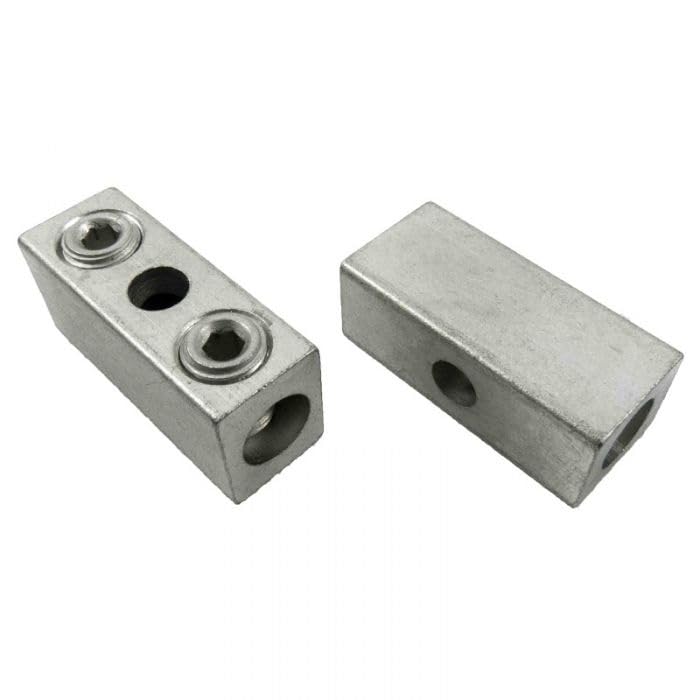

Hazlet SQ12005 250 MCM - 6 AWG 2 Screws Aluminum Splice/Reducer Mechanical Connector Number 250 kcmil (4/0 AWG) - 6 AWG Wire Range - Pack of 5
Product details
| Management number | 221453854 | Release Date | 2026/05/03 | List Price | $14.40 | Model Number | 221453854 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Hazlet Products SQ12005 250 kcmil (4/0 AWG) Splicer-reducer, 6 - 250 kcmil (4/0 AWG), wire class B/C and FLEX wire, 3/0-6 AWG, G-K including mm2 class 5, with mounting hole. Rounded corners for easy taping or shrink tube. Aluminum or copper wire and FLEX copper wire, splicer or reducer CU9AL, 90C temperature rating, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application. UL & Canada Approved for Multiple wires class B, C, 2X AWG 2-6 &2X 25-16 mm2 & (1X) FLEX wire Classes G-K sizes #3/0-#6 AWG.Aluminum Splicers/Reducers 2 Screw Aluminum Splice for Copper and Aluminum Cable AL9CU Dual Rated for both Copper and Aluminum Conductors Manufactured from High Strength 6061-T6 Aluminum Alloy to ensure both Maximum Strength and Conductivity Electro Tin Plated to provide low contact resistance and protection against corrosionSQ12005 use 3/8" Hex Socket Screw2 Screw Aluminum Reducer is rated 600 VoltscULus Listed Rated for use with Cables up to 194°F(90°C)Dimension Measurements: 2.50" (63.5mm) * 1.13" (28.7mm) * 0.83" (21.1mm) Inches Wire Range: 250 kcmil (4/0 AWG) - 6 AWG Screw Type: 3/8" Hex Socket Screw Rating: CU9ALBrand Equivalent: NSI 4/0-6, Morris 90617, Morris Products 90617, Southwire 65179640, Burndy AMS250, Burndy AMS-4/0, Hubbell AMS250 ,TnB 32509, TnB 32511, TnB Blackburn ASR2506, Blackburn ASR2506, Panduit SR-250-XY, Panduit SRA250-X, HMC-Homac BA250-250 HMC-Homac BA 250-2, ABB BA-250-2, ABB BA 250-2, Penn Union SR-250-2, Ilsco SPA-250, GB Gardner Bender GSPA-4/0, Anderson SR250, Anderson SR-250, Ecm Industries SPA-4/O, Ideal, Panduit SR-250-XY, Panduit SR-4/0-XYHazlet Products Hazlet SQ12002, Hazlet SQ12003 use slotted screws and Hazlet SQ12004, Hazlet SQ12005, Hazlet SQ12006, Hazlet SQ12007, Hazlet SQ12008 use Hex Socket ScrewsMade in the USA
- Made in the USA
- Aluminum Splice Reducer is AL9CU Dual Rated for both Copper and Aluminum Conductors
- Manufactured from High Strength 6061-T6 Aluminum Alloy to ensure both Maximum Strength and Conductivity
- Electro Tin Plated to provide low contact resistance and protection against corrosion
- SQ12005 use 3/8" Hex Socket Screw
- 2 Screw Aluminum Reducer is rated 600 Volts
- UL & Canada Approved for Multiple wires class B, C, 2X AWG 2-6 &2X 25-16 mm2 & (1X) FLEX wire Classes G-K sizes #3/0-#6 AWG.
- Rated for use with Cables up to 194°F(90°C)
- Dimension Measurements: 2.50" (63.5mm) * 1.13" (28.7mm) * 0.83" (21.1mm) Inches
| Color | Silver |
|---|---|
| Gauge | 4.0 |
| Model | SQ12005 - 5 |
| Terminal | Screw Terminal |
| Stud Size | 5 Pack |
| Brand Name | Hazlet Products |
| Unit Count | 5.0 Count |
| Part Number | SQ12005 - 5 |
| Manufacturer | Hazlet Products |
| Material Type | Aluminum |
| Connector Type | Butt Splice, Screw, Screw Terminal, Splice / Reducer |
| Maximum Voltage | 600 Volts |
| Number of Items | 5 |
| Contact Material | Aluminum |
| Specification Met | UL, ZMVV |
| Temperature Rating | 194°F |
| Included Components | Screw |
| Insulation Material Type | Non-Insulated |
| Item Dimensions L x W x H | 1.13"L x 0.83"W x 2.5"H |
